Request

mocked_apis.<API name>.http.request

This section is responsible for all settings of HTTP request.

method

The HTTP method which be accepted by API.

parameters

The parameter settings of API.

parameters[*].name

The name of parameter.

Example of usage:

mocked_apis:
  foo_home:
    url: '/foo-home'
    http:
      request:
        method: 'GET'
        parameters:
          - name: 'arg1'

mocked_apis:
  foo_home:
    url: '/foo-home'
    http:
      request:
        method: 'POST'
        parameters:
          - name: 'arg1'

Then you could use the parameter arg1 of API /foo-home.

curl -X GET http://127.0.0.1:9672/foo-home?arg1=value

curl -X POST http://127.0.0.1:9672/foo-home -H 'Content-Type: application/json' -d '{"arg1":"value"}'

parameters[*].required

This is a boolean type value. If it's true, web server would respond 400 error if the request misses the argument. Nor it would ignore it.

If insisting on requesting without required parameter ...

If you set a request parameter as required and you insisting on requesting without it, server would reutnr a 400 response with invalid message:

miss required param

parameters[*].default

The default value of parameter. If the parameter in request is empty or None value, it would use this value to process.

parameters[*].type

The data type of the parameter value API should accept. The setting value should be a valid type for Python realm, i.e., string type value as str, integer type value as int, etc.

Please refer to Python built-in types document to get more detail if you need.

What data type you should use?

As the description mention, the data type should be vallid for Python realm. Here provides some data type to help you configure your API parameters.

Data type Purpose
str Text type value
int Integer type value
bool Boolean type value
list Some object of list type value
dict Key-value map type value

If insisting on requesting with invalid type parameter ...

If you set a request parameter as one specific data type and you insisting on requesting with invalid type of it, server would reutnr a 4XX response with invalid message:

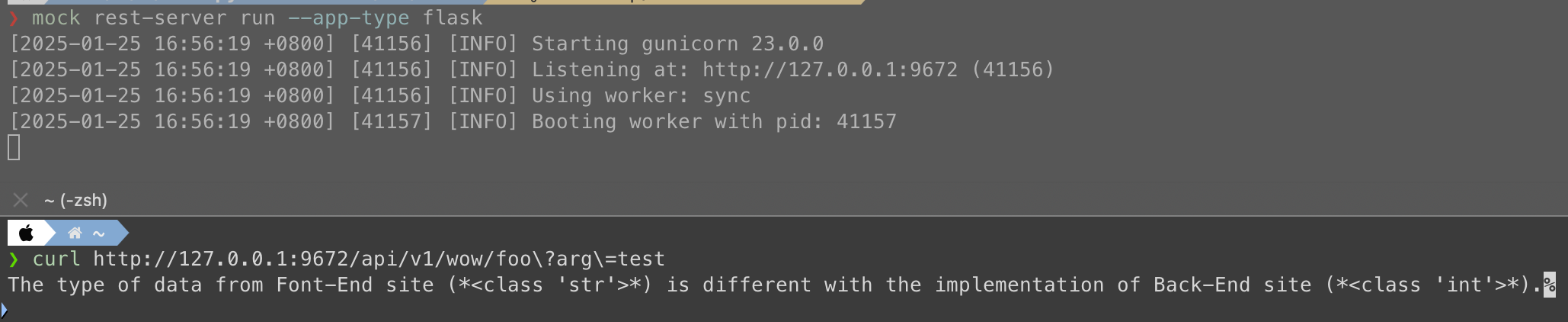

In Flask server, it would response a 400 error.

miss required param

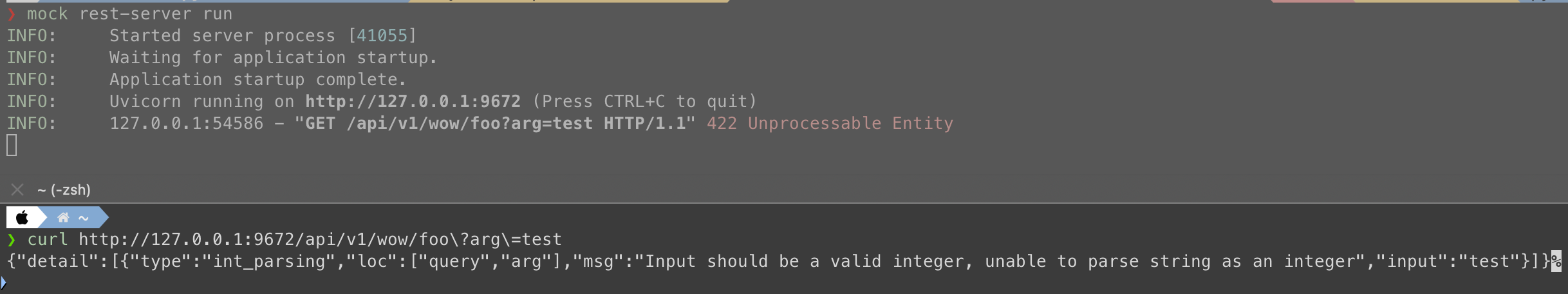

In FastAPI server, it would got failure at the property of request parameter data model and response a 422 error.

miss required param

parameters[*].format

A regular expression of parameter value API should accept. It would respond 400 error if the parameter value format is not satisfied.

About the setting details, please refer to here.

If insisting on requesting as invalid format value at the parameter ...

If you set a request parameter as one specific value format and you insisting on requesting with invalid format of its value, server would reutnr a 4XX response with invalid message.

Let's demonstrate the invalid format value in request parameter with format strategy FROM_ENUMS:

In Flask server, it would response a 400 error.

miss required param

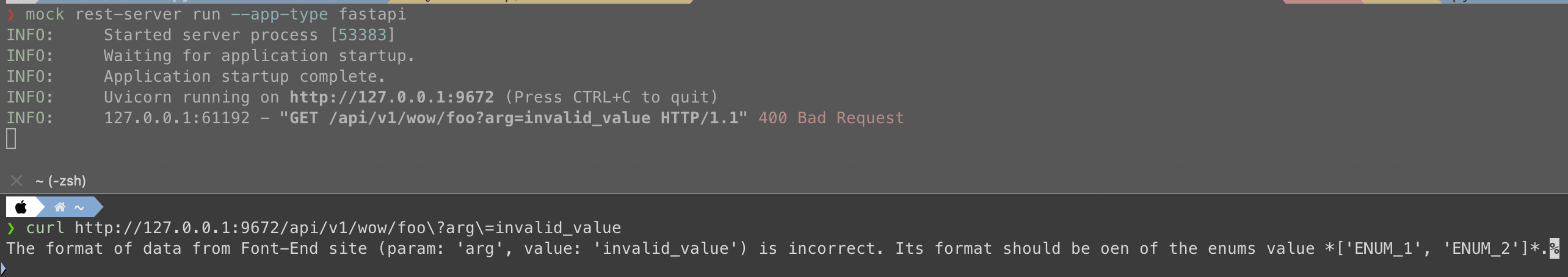

In FastAPI server, it would got failure at the property of request parameter data model and response a 400 error.

miss required param

parameters[*].items

If the data type of parameter value is list type, it should use this key to configure its element details. The element detail follow item element settings.
